Merge Sort

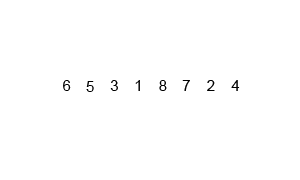

Merge sort operates by first breaking an array into its individual components. It then “pairs up” an individual with another, putting them into their proper place(sorted) with reference to each other. Merge sort then continues to pair up each sublist of numbers and sorts then in the process. This is continued until there is just one list remaining - the sorted array.

Merge sort is a divide and merge algorithm. This means it breaks down a problem into smaller parts, solves those parts, and then combines the solutions to solve the original problem.

How Does It Work?

1. Divide: split the list into two halves. If the list has one item, it’s already sorted, so you don’t need to split it further. Keep splitting the list until each one has only one item.
2. Conquer (sort and merge): start merging the list back together, but in a way that sorts them as you go. Compare the items from each half, and put them together in order. Do this for all the small lists until you combine and have one big sorted list.
3. Combine: the small sorted lists get combined step by step until you end up with one completely sorted list.

Example

Imagine you have this list of numbers to sort: [38, 27, 43, 3, 9, 82, 10].

1. Divide — split the list into two halves: [38, 27, 43] and [3, 9, 82, 10] (it doesn’t matter if you split them small-large or large-small). Keep splitting:

• [38, 27, 43] becomes [38] and [27, 43]
• [27, 43] becomes [27] and [43]
• [3, 9, 82, 10] becomes [3, 9] and [82, 10]
• [3, 9] becomes [3] and [9]
• [82, 10] becomes [82] and [10]

2. Conquer (sort and merge):

• Merge [27] and [43] to get [27, 43]
• Merge [38] and [27, 43] to get [27, 38, 43]
• Merge [3] and [9] to get [3, 9]
• Merge [82] and [10] to get [10, 82]
• Merge [3, 9] and [10, 82] to get [3, 9, 10, 82]

3. Combine — finally, merge [27, 38, 43] and [3, 9, 10, 82]. Start comparing and merging: 3 is smaller than 27, so start with 3; 9 is smaller than 27, so next is 9; 10 is smaller than 27, so next is 10; 27 is next, then 38, then 43, and finally 82. The final sorted list is [3, 9, 10, 27, 38, 43, 82].

Now let’s understand this. If we are going to break down the array into two smaller arrays, and then break the smaller arrays into two smaller arrays - and so on…it wouldn’t really make sense.

This is where we try to play around with indexes. In order to write some pseudocode, let’s take an array of size 5. [3, 2, 4, 1, 3]. A simple loop will go until index 4.

We can refer to our first array index as low and our last array index as high, referring to the starting and ending points of our hypothetical array.

merge_sort(arr, low, high){
  if(low >= high){
    return;
  }

  middle = (low + high) / 2;

  merge_sort(arr, low, mid);
  merge_sort(arr, mid+1, high);

  merge(arr, low, mid, high); // this is where we compare and merge
}

Instead of making two new arrays, we use the low and high indexes to divide the arrays and sort them. What is happening above is a recursive approach. So we keep dividing the arrays, but until what point do we stop the divisions, we need a base case for that.

We can stop dividing the array if it contains only one element. In other words, if low and high point to the same value. Therefore, that is our base case.

The above pseudocode doesn’t actually demonstrate the logic in merging the smaller arrays. But below is how we do that:

merge(arr, low, mid, high){
  temp = [];
  left = low;
  right = mid + 1;

  while(left <= mid && right <= high){ //while there are still some elements
    if(arr[left] <= arr[right]){
      temp.add(arr[left])   // add the smaller one to the new array
      left++; // move the left pointer to the right
    } else{
      temp.add(arr[right]); // add the smaller one to the new array
      right++; // move the right pointer to the left
    }
  }

  // if after merging, and there are still some elements left
  while(left <= mid){
    temp.add(arr[left]);
    left++;
  }

  while(right <= high){
    temp.add(arr[right]);
  }

  // move the sorted array from the temporary array into the original array
  for(i = low to high){
    arr[i] = temp[i-low];
  }
}

In Code

A simple solution could look like this in C++:

void merge(vector<int> &arr, int low, int mid, int high){
  vector<int> temp;

  int left = low;
  int right = mid+1;

  while (left <= mid && right <= high){
    if(arr[left] <= arr[right]){
      temp.push_back(arr[left]);
      left++;
    } else{
      temp.push_back(arr[right]);
      right++;
    }
  }

  while(left <= mid){
    temp.push_back(arr[left]);
    left++;
  }

  while(right <= high){
    temp.push_back(arr[right]);
    right++;
  }

  for(int i = low; i<=high; i++){
    arr[i] = temp[i - low];
  }
}

void ms(vector<int> &arr, int low, int high){
  if(low == high) return;

  int mid = (low + high) / 2;
  ms(arr, low, mid);
  ms(arr, mid+1, high);

  merge(arr, low, mid, high);
}

void mergeSort(vector<int> &arr, int n){

  ms(arr, 0, n-1);
}

Another solution could go like this:

class Solution {
public:
    vector<int> sortArray(vector<int>& nums) {
        mergeSortHelper(nums, 0, nums.size() - 1);
        return nums;
    }

    void mergeSortHelper(vector<int> &nums, int low, int high){

        if(low < high){
            int mid = (low + high) / 2;
            mergeSortHelper(nums, low, mid);
            mergeSortHelper(nums, mid + 1, high);
            merge(nums, low, mid, high);
        }
    }

    void merge(vector<int> &nums, int l, int m, int r){
        vector<int> left(nums.begin() + l, nums.begin() + m + 1);
        vector<int> right(nums.begin() + m + 1, nums.begin() + r + 1);

        int i = 0, j = 0, k = l;

        while (i < left.size() && j < right.size()) {
            if (left[i] <= right[j]) {
                nums[k++] = left[i++];
            } else {
                nums[k++] = right[j++];
            }
        }

        while (i < left.size()) {
            nums[k++] = left[i++];
        }

        while (j < right.size()) {
            nums[k++] = right[j++];
        }
    }

};
